Shelf Testing: how to build the spreadsheet (XLSX file) for a shelf upload

Published: Updated: 20 min read

Your shelf is built from one spreadsheet of products, plus the pictures of those products.

#Start here

Before you begin you need three things:

  • A list of your products.
  • One picture of each product, saved as JPEG or PNG.
  • Excel or Google Sheets, to edit the spreadsheet.

The spreadsheet app calls the whole file a workbook, and calls each tab in it a sheet. This guide uses those two words.

#The two buttons

Open your shelf study and go to the study editor. On the shelf toolbar you will see:

  • Add Products adds products one at a time, by hand.
  • Import from XLSX builds the whole shelf from a spreadsheet. Use this one.

The import window takes .xlsx and .xls files. It also links a ready sample workbook, named Download sample XLSX structure.

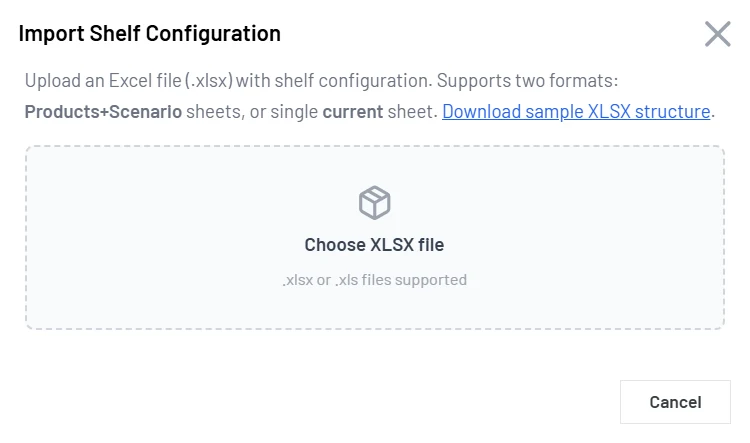

The import window, headed Import Shelf Configuration, with a sentence about the two supported layouts, a dashed Choose XLSX file drop zone and a Cancel button

Choose Choose XLSX file and pick your workbook. The window then shows what it found before anything changes in your study.

#The easy way to start

Download these two files. They match the example further down this page, so you can run a full import before you build your own file.

Import them once. If a shelf appears, you know your setup works, and you can copy that workbook and replace the rows with your own.

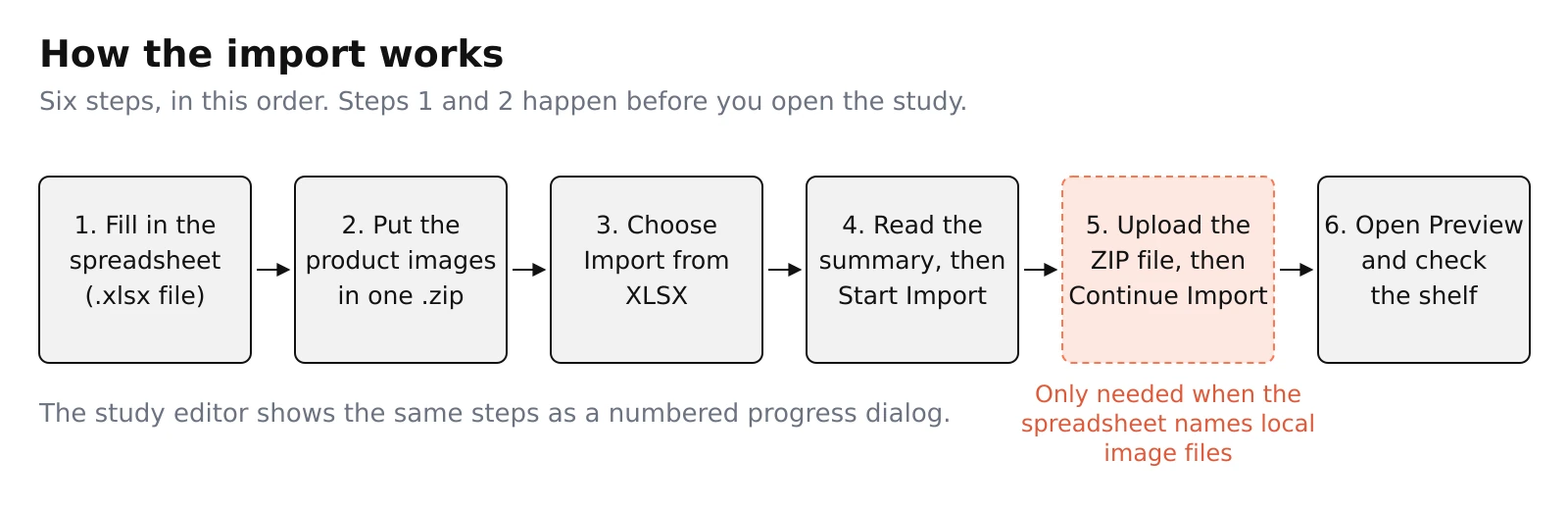

Six steps: fill in the spreadsheet, put the pictures in one ZIP file, choose Import from XLSX, read the summary, start the import, then upload the ZIP and check the shelf in the preview

#Four things people get wrong

  • The column names. The importer looks for exact names. Do not rename them, and do not add capitals.
  • The bay numbers. They decide how many bays you get and which bay is on the left.
  • The picture file names. The name you type in the sheet must match the file name inside your ZIP archive.
  • Which price column you fill in. The tag under each pack reads reference_price in the Scenario sheet. A price in the Products sheet does not reach the tag.

#What the words mean

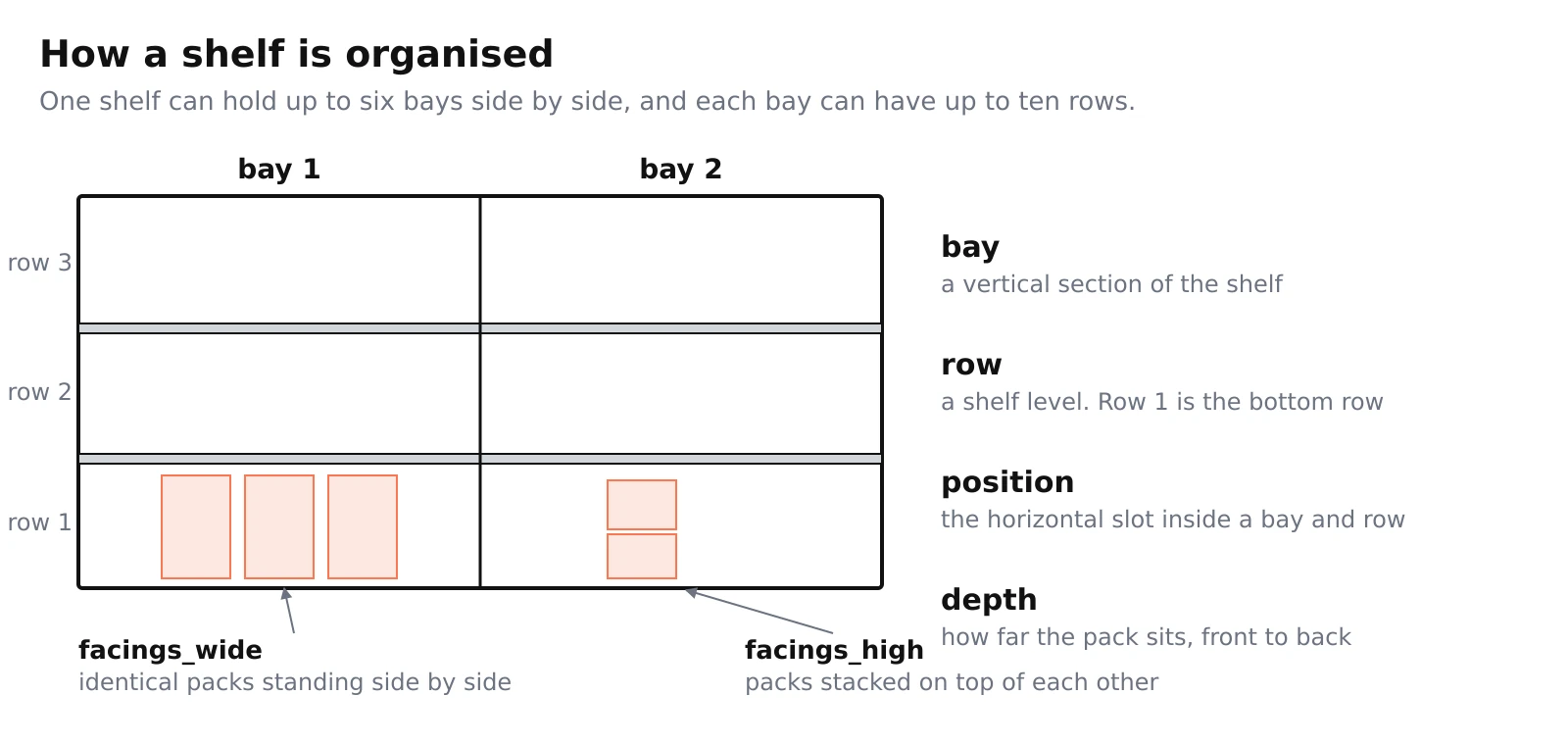

A shelf with two bays, three rows in each bay, three packs side by side in the bottom row and one pack stacked on top of another

  • Sheet. One tab of the workbook. This guide uses three: Products, Scenario 1 and Settings.
  • Bay. One upright section of shelving, like one section of a supermarket aisle. A shelf can hold up to six bays side by side.
  • Row. One shelf board inside a bay, where products stand. Each bay can have up to ten rows.
  • Position. Where a product sits along the row, counting from the left. Think of it as a numbered slot.
  • Facing. One pack facing the shopper. Three facings of the same product means three packs standing side by side.
  • Stack. Packs of the same product sitting on top of one another.

#Which layout do I need?

The importer understands two shapes of spreadsheet, and nothing else.

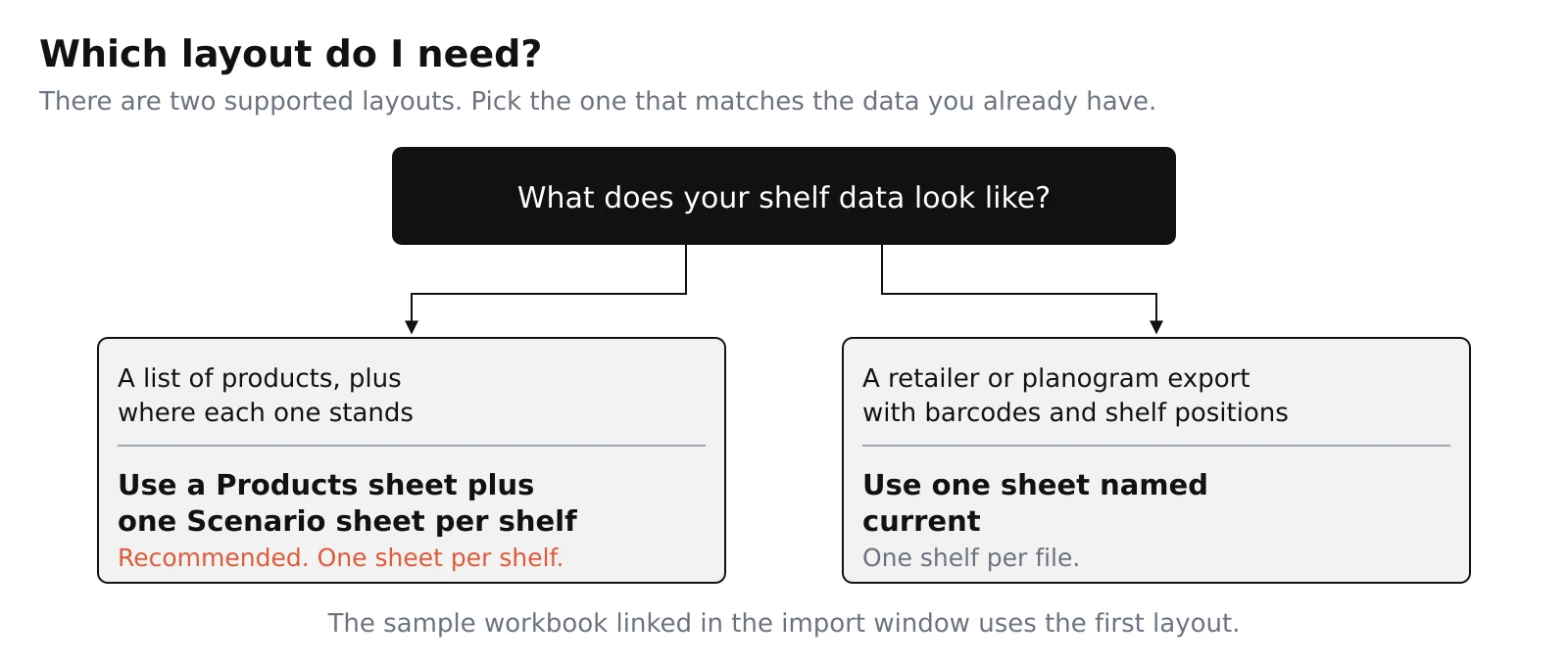

A choice: a product list with positions leads to a Products sheet plus one Scenario sheet per shelf, while a retailer export with barcodes leads to one sheet named current

Spreadsheet shape Use it if Sheets you need Shelves it makes
Products plus Scenario sheets You have a product list and you decide where each product stands Products, then Scenario 1, Scenario 2 and so on One shelf for each Scenario sheet, up to six
One sheet named current Your planogram (the shelf layout document a retailer uses) or export already lists barcodes and shelf positions current One shelf for the whole file

Most people use the first shape, so this guide follows it. The second shape is described at the end under "If your shelf comes from a retailer".

#Try the example first

The downloadable workbook has two sheets already filled in. Here they are.

The Products sheet

id name price image_url height has_transparent
cereal-a Cereal A 500 g 3.49 cereal-a.png 300 1
cereal-b Cereal B 750 g 4.19 cereal-b.png 340 1
drink-x Juice X 1 l 2.99 juice-x.png 260 0
snack-y Snack Y 120 g 1.79 snack-y.png 180 0

The Scenario 1 sheet

product_id shelf bay position facings_wide facings_high reference_price
cereal-a 1 0 0 3 1 3.49
cereal-b 1 0 3 1 1 4.19
drink-x 1 1 0 1 1 2.99
snack-y 2 0 0 2 2 1.79

Here is what the import window shows for that workbook, before you confirm anything:

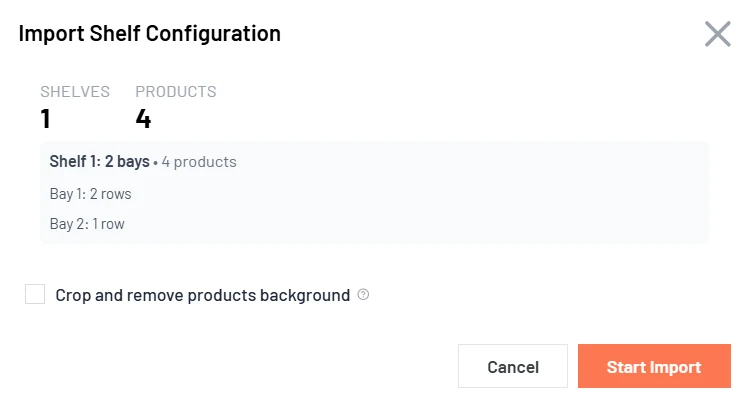

The same window after the workbook is read: one shelf, four products, Shelf 1 with two bays, Bay 1 with two rows and Bay 2 with one row, then a Cancel button and an orange Start Import button

What that produces, in plain words:

  • Bay 1 has two rows, because the highest row number used there is 2. The bottom row holds Cereal A as three packs side by side, then Cereal B next to it. The row above holds Snack Y as two packs wide and two packs high.
  • Bay 2 has one row, because only row 1 is used there. It holds Juice X.
  • Each pack is sized from its height number, so Cereal B looks a little taller than Cereal A.
  • Each price tag reads the reference_price for that row, so the tags say 3.49, 4.19, 2.99 and 1.79.
  • The four picture files go into one ZIP archive, because the sheet refers to them by file name.

#Build your own file

Copy the example workbook, then replace the example rows with your own. Keep the sheet names and the column names exactly as they are.

#Sheet 1: Products, your product list

One row per product. The first row of the sheet holds the column names, and they must keep these exact names, in lower case.

Column name What to put in it Needed? Example
id A short code you make up for the product. Use up to 50 characters, and make every code different Yes cereal-a
name The name you want shown on the shelf label Yes Cereal A 500 g
image_url The file name of the picture, or a web address starting with https:// Yes cereal-a.png
price A price kept with the product. The shelf tag does not read this column No 3.49
height How tall the pack really is. Use any unit you like, as long as you use the same one for every product. The importer uses these numbers to decide how tall each pack looks next to the others. Leave the column out and every pack shows at full size No 300
height_cm The product's real height in centimeters. When you fill it in, it wins over height_percent for how tall the pack stands; when you leave it blank, the pack is sized from its percentage (and, when you set a shelf height, it keeps the size it has on a 200 cm shelf). Use a number from 1 to 250 No 20
has_transparent Put 1 if the picture should have its background removed, otherwise 0 or leave it blank No 1

#Sheet 2: Scenario 1, where each product stands

One row for each product on the shelf. For a second shelf, add another sheet named Scenario 2, and so on.

Column name What to put in it Needed? Example
product_id The same code you used in the id column of the Products sheet Yes cereal-a
shelf Which row the product stands on, counted from the bottom. Row 1 is the bottom row Yes 1
bay Which bay it stands in. Leave it blank to use the first bay No 0
position Which slot along the row, counting from the left and starting at 0 Yes 0
facings_wide How many packs stand side by side. 1 or more No 3
facings_high How many packs are stacked on top of each other. 1 or more No 1
height_percent The pack's percentage of one uniform row cell in its bay, excluding the plank, not the whole shelf. Overrides the relative product height sizing. Write a percentage, for example 90 No 90
height_cm Overrides the Products-sheet height_cm for this scenario only. Same rules and range as that column. Leave it blank to keep the product's own value No 20
depth How far the pack sits front to back, used by the 3D view. 0 or more No 1
item_spacing Extra space between the packs of one product. 0 or more No 0
reference_price The number shown on the shelf tag. Any number from 0 upwards. A comma or a full stop both work, so 1.99 and 1,99 mean the same. Leave the column out and every tag shows 0 No 3.49
reference_name A note carried along with the row. Nothing on the shelf reads it No Promo pack

Where the shelf price comes from. The tag under each pack takes its number from reference_price in the Scenario sheet. The price column in the Products sheet does not reach the tag, so a shelf with full prices written there still shows 0 on every tag. The one exception is a file imported as a single current sheet, described under "If your shelf comes from a retailer", where the Price column in that sheet is the one used.

Two things to remember:

  • Only products listed here appear on the shelf. A product in the Products sheet that you never place is not added to the study.
  • Percentage-sized packs can be made smaller until they fit. An explicit height_cm remains the real single-pack height for the fit check, even if the displayed pack was made smaller; stacks multiply that height.
  • The height_cm fields are optional. Without authored cm, import keeps the existing percentage placement. If you set shelf_height_cm smaller than a cm-sized pack or stack needs in its row, import is blocked and names the pack and row that do not fit. Bays fit independently within the same shelf height.

#Physical sizes and saved defaults

If shelf height is blank, 200 cm is used and saved on the first save, including the save after import. Shelf width is not something you set — it always follows the 64:36 frame from the height (200 cm gives 355.56 cm). A pack without an explicit cm height gets its committed percentage multiplied by one uniform row cell in its bay, excluding plank thickness. At 45%, a 200 cm shelf with five rows and 10% planks gives a 16.2 cm pack; one row gives an 81 cm pack. Changing custom row shares changes which packs fit, not this sizing reference. Stacking does not change the saved single-pack height. Explicit values are never replaced; derived pack heights outside 1..250 cm stay blank rather than being clamped, and products in Storage are not given default heights. Saved defaults appear after reload and are included in spreadsheet exports; older shelves gain shelf height (and the frame-derived width) in their configuration export after saving.

#Changing the shelf height

Packs keep their real size when you change the shelf height. A pack you gave an explicit height_cm stays that height. A pack sized by percentage keeps the physical size it has on a 200 cm shelf — its percentage of one uniform row cell, rounded to a whole centimetre — so a shorter shelf shows the same packs packed more tightly, and a taller shelf shows the same packs smaller within a greater physical height.

The editor will not let you make the shelf too short for what is already on it. The shelf height box sits beside the shelf on a static line, and the shelf's own top and base edges can be dragged to resize its height. If lowering the shelf height would leave a pack or a stack taller than its row, the change is refused: the value snaps back and a message appears directly under the height box explaining that the shelf height cannot be lowered to the value you entered because products would fall off the shelf. Nothing is moved to Storage. Clearing the height box falls back to 200 cm, which is itself a decrease from a taller shelf and can be refused the same way.

The same warning protects a single pack. Open a pack's Item size / Height (cm) control in the shelf editor — it shows both the pack's size in percent and its height in cm — and type a value in the Height (cm) field: if it is outside 1 to 250 cm, or if the pack (or its stack) would no longer fit its row, the value is refused — the box snaps back to the last value you set and a small warning icon next to it explains why. Nothing about the pack changes until you enter a value that fits, and no pack is ever moved to Storage.

Height boxes show at most one decimal place, so a value is displayed rounded to one decimal.

#Sheet 3: Settings, only if you want to change something

Leave this sheet out and the shelf uses sensible defaults. It has three columns: setting, value, and an optional shelf. Leave shelf empty to change the setting on every shelf, or put a shelf number to change it on one Scenario sheet only.

The settings people change most:

Setting What it changes
theme The shelf background: default, wooden, grocery, cooler, freezer or none
show_prices Show price tags or not: 1 or 0
currency The text on the price tag, for example $ or EUR
currency_position Whether the currency goes before or after the number
shelf_duration How long the shelf stays on screen, in seconds
bay_widths How wide each bay is, separated by semicolons, for example 40;60. The numbers do not have to add up to 100

Every other setting is listed in "Reference: all the settings" at the end of this page.

#How bays work

One shelf can hold up to six bays side by side, and each bay can have up to ten rows.

You do not have to start numbering at 1. The importer takes the lowest number you used in that sheet, treats it as the first bay, and counts up from there. So all three of these sheets give you the same shelf.

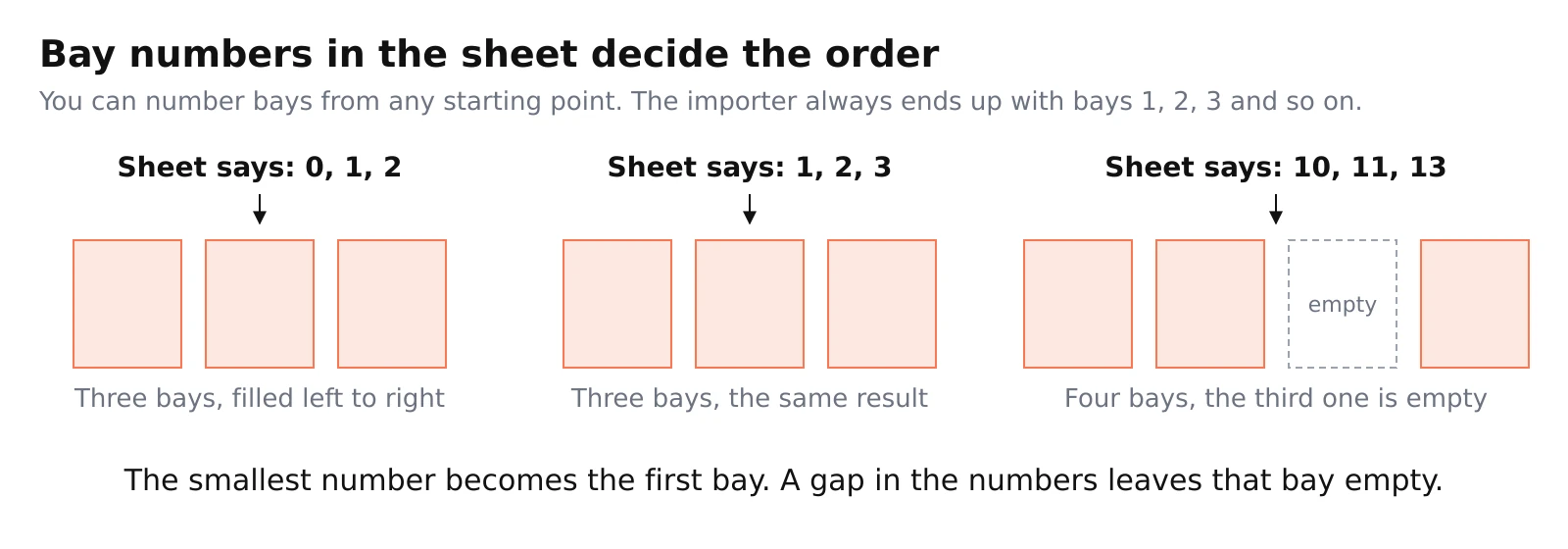

Three examples: bay numbers 0, 1 and 2 give three bays, bay numbers 1, 2 and 3 give three bays, and bay numbers 10, 11 and 13 give four bays with the third one empty

Numbers you typed Bays you get Why
0, 1, 2 Three bays Filled from left to right
1, 2, 3 Three bays The same shelf, because 1 becomes the first bay
10, 11, 13 Four bays The third bay is empty, because 12 is missing

Four rules:

  • Leave a bay cell blank and the product goes into the first bay.
  • A missing number leaves that bay empty. This is how you leave a gap in the shelf.
  • The lowest number sits leftmost, so the numbers decide the left to right order.
  • Two products cannot share the same bay, row and position.

Each Scenario sheet is counted on its own, because each one is a separate shelf.

To change bays before importing, edit the bay column in the sheet, then use bay_widths for the widths and the bay settings in the reference section for the rows.

To change bays after importing, use the shelf editor: the Bays row shows each bay and its number of rows, Add bay adds another section, the bin icon removes one, and the handles on the shelf change bay widths and row heights.

#The product pictures

Every product needs a picture, and you can give the picture in two ways.

What you put in image_url What to do
A file name, for example cereal-a.png Put all those files into one ZIP archive and upload it at the second step of the import. The importer matches by file name, and capital letters do not matter, so Pack-A.PNG in the ZIP is found by pack-a.png in the sheet
A web address starting with https:// The picture is taken from the web. It does not need to be in the ZIP. You can mix both ways in one file

Rules for the pictures:

  • Each picture must be JPEG or PNG, and 30 MB or smaller.
  • No side may be longer than 15000 pixels, and at least one side must be 50 pixels or more.
  • Do not put two files with the same name in one ZIP archive. Rename one of them and update the sheet.

The example pictures archive follows these rules, so you can look inside it to see a working example.

#The most you can have

What Limit
Shelves in one study 6
Bays on one shelf 6
Rows in one bay 10
Products in one study 500, counting the products you place on a shelf and any products already in the study

#When the import complains

The import window lists every problem it finds, and tells you the sheet and the row. It will not start until the serious ones are fixed.

What you see Why What to do
A required sheet is missing The workbook has no Products sheet, no Scenario N sheet and no current sheet Check the sheet names, including the spelling of Scenario 1
A required value is missing A code, name, picture or position cell is empty Fill the cell, or delete the row if the product is not on this shelf
A value is not a whole number A position or a bay holds something like 2.5 Use whole numbers. 2.0 is fine, 2.5 is not
The same bay, row and position is used twice Two products want the same slot Move one of them to a free slot
A product code is used twice Two rows share an id, or share the first 50 characters Give every product its own code
A bay number is 7 or higher You used more than six bays Split the shelf over two Scenario sheets, or use fewer bays
Pictures are missing from the ZIP A file name in the sheet has no matching file in the archive Add the file, or use a full https:// address instead
Two files in the ZIP share a name The archive holds two files with the same name Rename one of them and update the sheet
The study would go over 500 products The study is close to the limit Remove some products, or use another study
Browser storage is full, so the shelf import progress could not be saved. Free up some browser storage and re-run the import. The browser's storage for this site is full Free up some browser storage, for example by clearing this site's stored data or other sites' stored data, then re-run the import. The study is left without partial shelves from the stopped attempt
The shelf layout was not confirmed in time. Please retry the import. The shelf editor did not confirm the placed layout within 20 seconds Retry the import. If it happens again, reload the page and import once more

Some notes are only warnings and do not stop the import. They appear when a product code is longer than 50 characters, when a product ends up unusually tall, or when a Scenario sheet number is missing.

#Step by step

  1. Download the example workbook, and keep its sheet names and column names.
  2. Replace the rows in the Products sheet with your own products.
  3. Replace the rows in the Scenario 1 sheet with where each product stands, and with the price its tag should show in reference_price.
  4. Add a Scenario 2 sheet for a second shelf, and so on.
  5. Add the Settings sheet only if you want to change something.
  6. Save the file as .xlsx.
  7. Put every picture that the sheet names by file name into one ZIP archive, or use https:// addresses and skip the ZIP.
  8. In the study editor choose Import from XLSX, pick your file, and read the summary. It shows how many shelves, how many products, and each bay with its number of rows.
  9. Fix anything it flags, then choose Start Import.
  10. When it asks for the pictures, upload the ZIP and choose Continue Import.
  11. Open the shelf preview and adjust anything by hand.

If the import stops halfway, it remembers where it got to. When you come back it asks for the ZIP again and carries on. The one exception is a stop caused by the browser's storage being full: the shelves created up to that point are rolled back, and the import must be re-run from the start rather than resumed.

#If your shelf comes from a retailer

Some retailers give you a planogram export that already lists barcodes and shelf positions. If your file looks like that, you can import it directly as one sheet named current. One file gives you one shelf, and column names here are read without caring about capitals.

Column What it holds Needed? Example
Shelf A letter and a number, for example A1. The letter is the row, where A is row 1 and B is row 2, and the number is the position in that row, counting from 1 Yes A1
UPC The barcode number. It is also used to match the picture file Yes 3760304183485
Brand or Variant name/description The product name. If both are filled in, the variant description wins At least one Cereal A 500 g
Bay The bay number No 1
Price and Currency The price, and the currency written as a code such as EUR or USD. The code is shown as its symbol No 3.49 and EUR
Number of facings, Number of stackings, Number of depths The same as facings_wide, facings_high and depth in the other layout No 3
Height The pack height, used in the same way as in the other layout No 300

Pictures for this layout must be named {Shelf}_{UPC}.1.png, for example A1_3760304183485.1.png.

#Reference: all the settings

Use these in the Settings sheet. The shelf column is optional: leave it empty to apply the setting to every shelf, or put a shelf number to apply it to that Scenario sheet only.

Setting What it does
shelves_count How many rows a bay has, when you do not set them one by one
bay_1_shelves_count, bay_2_shelves_count, and so on How many rows a single bay has. Bay 1 is the leftmost bay after import
bay_1_row_heights, bay_2_row_heights, and so on How tall each row in a bay is, from top to bottom, separated by semicolons, for example 30;30;40. Give one number per row
bay_widths How wide each bay is, separated by semicolons, for example 40;60. The numbers do not have to add up to 100
shelf_thickness How thick the shelf boards look
shelf_height_cm The shelf's real height in centimeters. Use a number from 30 to 300. When set, if the packs on the shelf are taller than it, the import/save is blocked and the pack and row that do not fit are named, and lowering it later in the editor is refused rather than moving packs to Storage. Packs sized by percentage keep the size they have on a 200 cm shelf. Shelf width is not a setting — it always follows the 64:36 frame from the height
theme default, wooden, grocery, cooler, freezer or none
show_prices, show_labels, force_hq_images, show_shelf 1 to turn on, 0 to turn off. show_3d does the same as show_shelf
currency The text shown on price tags, for example $ or EUR
currency_position before or after the amount
price_tag_size small, medium or large
decimal_places 0 or 2
shelf_duration How long the shelf stays on screen, in seconds
shelf_variant previewing, finishonpurchase or finishoncheckout
shelf_engine How the shelf is drawn: basic, optimized-50 or pro
grid_size The size of the invisible grid that products snap to: default or large

"Allow finishing with empty cart" is set in the shelf builder only, and it is not part of the spreadsheet export or import. Shelves created by a spreadsheet import start with this setting off, and an existing shelf keeps its current setting. After a spreadsheet import, check the setting again in the builder.

#Related
